Philips CoreLine Downlight Gen5 LED 24.5W 4000K 2250 lumens DALI UGR19 IP20 White Ø216mm
Philips CoreLine Downlight Gen5 LED 24.5W 4000K 2250 lumens DALI UGR19 IP20 White Ø216mm
Philips CoreLine Downlight Gen5 LED 24.5W 4000K 2250 lumens DALI UGR19 IP20 White Ø216mm
Philips CoreLine Downlight Gen5 LED 24.5W 4000K 2250 lumens DALI UGR19 IP20 White Ø216mm

LED Downlight White
-
24.5W
-
2250 lm
-
4000K
-
Dimmable

PH109100
Datasheet
224,95
Stock: 30+
Expected delivery time: 7 - 9 dagen
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Philips CoreLine Downlight Gen5 LED 24.5W 4000K 2250 lumens DALI UGR19 IP20 White Ø216mm
LED Downlight White
-
24.5W
-
2250 lm
-
4000K
-
Dimmable
224,95
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0,00
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Description

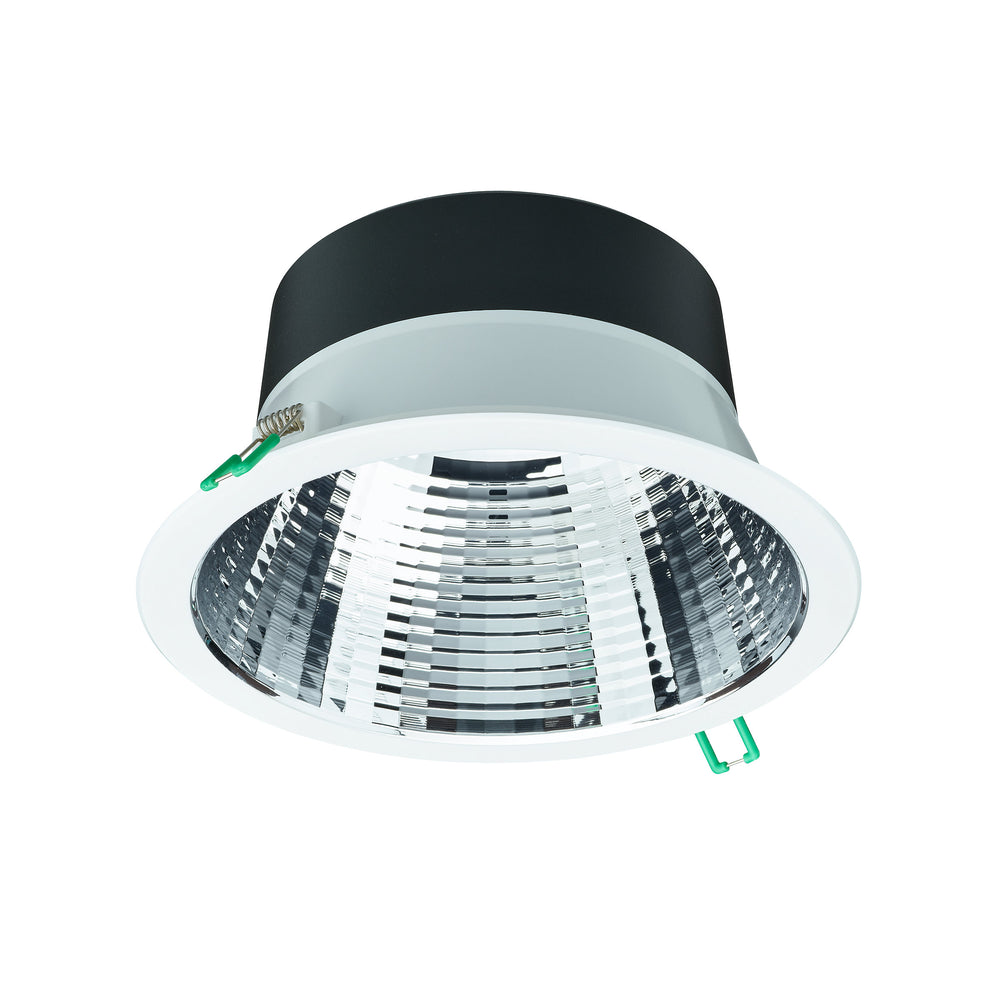

Enhance your lighting with Philips CoreLine Downlight Gen5

The Philips CoreLine Downlight Gen5 LED delivers 2250 lumens of bright neutral white light, giving you excellent energy savings, reduced glare, and a sleek modern design. With DALI dimming and a UGR19 rating, you get flexibility and visual comfort in any application.

Why you will love this LED downlight

This LED downlight is designed to upgrade your lighting with high efficiency and strong visual comfort. You get reliable performance at 24.5W, long lifespan with L80 at 50,000 hours, and simple installation thanks to its integrated driver design. Whether it is offices, schools, or commercial spaces, this downlight gives you the look and efficiency you need.

Key features and benefits

  • Philips CoreLine Downlight Gen5 LED 24.5W 4000K 2250 lumens: Perfect for professional spaces where energy savings and quality lighting matter.
  • 2250 lumens output ensures your area is brightly and evenly lit, reducing the number of fixtures needed.
  • 4000K neutral white light creates a clean and productive atmosphere, ideal for offices and commercial environments.
  • UGR19 rating minimizes glare, helping you maintain visual comfort for employees and visitors.
  • DALI-2 dimming control gives you smart flexibility to adjust brightness for different needs.
  • IP20 and IK02 ratings make it suitable for indoor areas and provide basic protection against dust and impacts.
  • Faceted reflector enhances light distribution, improving illumination quality and reducing unwanted hotspots.
  • Durable polycarbonate housing with aluminum-coated reflector ensures long-term performance and lightweight design.
  • Emergency lighting option offers 3 hours of operation, giving you added safety in case of power failures.
  • Certified with CE, ENEC, and RoHS compliance, guaranteeing safety and environmental standards.

Practical applications

You can use this LED downlight in offices, meeting rooms, classrooms, corridors, or retail stores. It is especially suitable when you want an energy-efficient, glare-controlled lighting solution that also offers optional emergency lighting support. The easy fit into a 200-205mm cutout makes installation quick and simple.

Specifications

General

Product Name
CoreLine Downlight Gen 5
Full Product Name
DN142B 20S/840 PSD-E UGR19 ELB3
Product Family Code
DN142B
Order Code
8720169109100
Material Number (12NC)
910505103610
EAN/UPC
8720169109100
Driver Included
Yes
Service Tag
Yes
Warranty Period
5 years
Maintenance Class
Class C, luminaire without parts to be serviced

Electrical Ratings

Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Power Consumption
24.5 W
Power Consumption Tolerance
±10%
Power Factor
0.95
Inrush Current
10 A
Inrush Time
0.002 ms
Total Harmonic Distortion
35%
Number of Products on MCB 16A Type B
100
Cable
2 cables 0.15 m with 2-pole connectors

Light Technical

Luminous Flux
2250 lm
Luminous Efficacy
92 lm/W
Correlated Color Temperature
4000 K
Color Rendering Index (CRI)
>80
Light Source Color
840 neutral white
Saturated Red (R9)
<50
Luminaire Beam Spread
60°
Unified Glare Rating (UGR)
19
Optic Type
Faceted reflector
Luminous Flux Tolerance
±10%
Initial Chromaticity
(0.380, 0.377) SDCM≤5

Controls and Dimming

Dimmable
Yes
Control Interface
DALI
DALI Standard
DALI-2
Constant Light Output (CLO)
No
Driver Type
External power supply unit with DALI interface

Physical Attributes

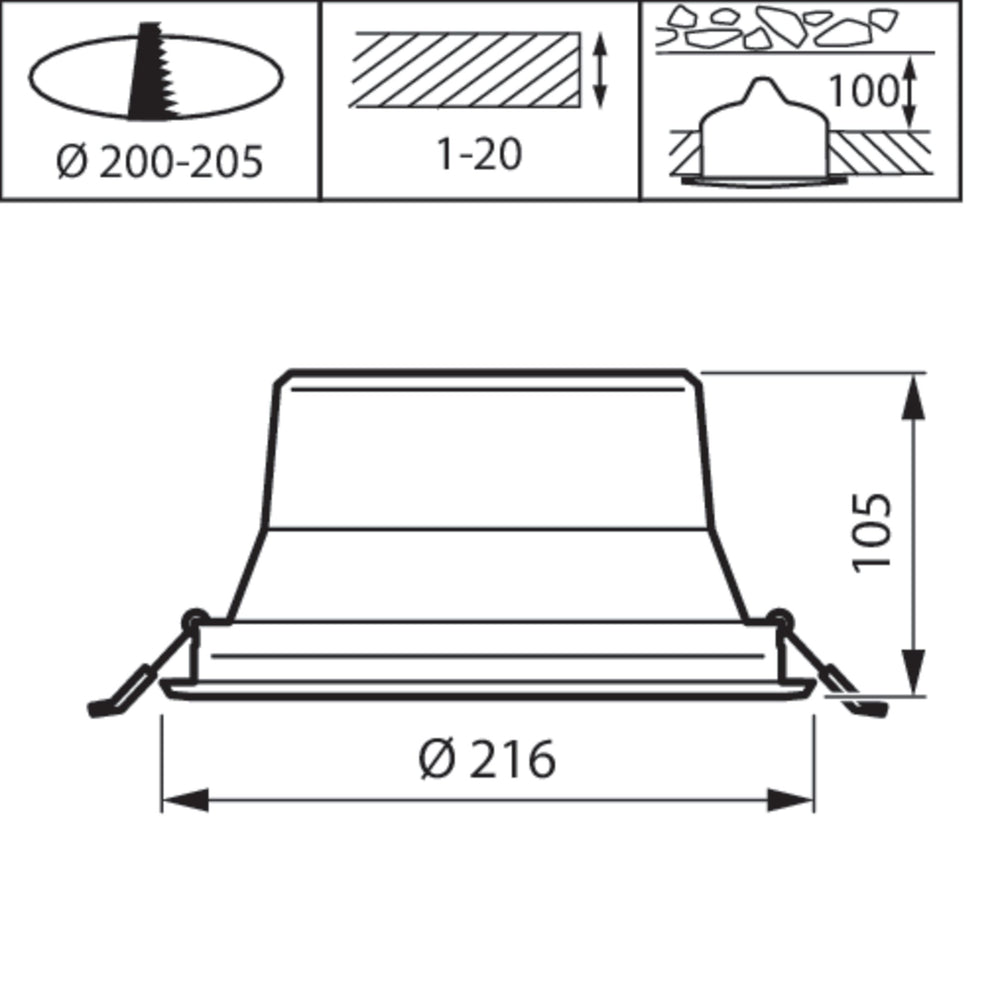

Dimensions
Total Height
105 mm
Total Diameter
216 mm
Cutout Diameter
200-205 mm
Ceiling Thickness
1-20 mm
Housing Material
Polycarbonate
Reflector Material
Polycarbonate, aluminum coating
Optical Cover Material
Polycarbonate
Housing Color
White
Reflector Finish
Faceted reflector
Net Weight
1.39 kg

Operating Conditions

IP Rating
IP20
IP Rating Description
Finger-protected
IK Rating
IK02
IK Impact Resistance
0.2 J
Ambient Temperature Range
-20 to +40 °C
Performance Ambient Temperature (Tq)
25 °C
Stroboscopic Effect Value (SVM)
1

Performance Over Time

Lumen Maintenance at 50,000 hours
L80
Driver Failure Rate at 50,000 hours
5%

Emergency Lighting

Type
3-hour basic emergency lighting
Emergency Duration
3 hours
Additional Power Consumption (charging)
4.5 W
Central Emergency Supply Compatible
No

Approvals and Classifications

IEC Protection Class
Class II
Flammability Mark
F (For mounting on normally flammable surfaces)
Glow-Wire Test
650 °C, duration 30 s
CE Mark
Yes
ENEC Mark
Yes
EU RoHS Compliant
Yes
Photobiological Risk
Risk Group 1 @ 200mm (to EN62471)
