Philips LED Recessed Spotlight ClearAccent RS071B 40D PSR PI6 White
-
6W
-
550lm
-
2700K/3000K/4000K
-
Ø89mm
-
Yes
-
IP65
25,95
Recessed Outdoor Spotlights
Outdoor recessed spotlights integrate seamlessly into various exterior surfaces, such as terraces, canopies, façades, or pathways. They provide a sleek appearance while offering both targeted and diffuse lighting. This lighting solution enhances both safety and ambiance around a home or building by illuminating dark areas and accentuating architectural details.
1 product
Safety and Durability with the Right IP Rating
The level of protection that outdoor lighting provides against external influences, such as dust and water, is indicated by its IP rating (Ingress Protection). For recessed outdoor spotlights, an appropriate IP rating is crucial for ensuring both lifespan and safety. The IP rating consists of two digits: the first number refers to protection against solid objects (dust), and the second to protection against water. A higher IP rating means better protection.
The most common IP ratings for outdoor recessed spotlights are:
| IP Rating | Protection | Typical Outdoor Application |
|---|---|---|
| IP44 | Water splash resistant | Under a roof or canopy, well-protected areas. |
| IP65 | Dustproof and resistant to water jets | Open terraces, façades, less sheltered locations. |
| IP67 | Dustproof and protected against temporary immersion | Ground spotlights along pathways, in paving, occasional short contact with water. |
| IP68 | Dustproof and protected against permanent immersion | Recessed spotlights in ponds or water features. |
Installing Outdoor Recessed Spotlights: A Practical Approach
Installing recessed spotlights outdoors requires precision, especially when it comes to watertight connections. It is important that the entire installation – from the fixture to the wiring – is made completely waterproof to prevent malfunctions and hazardous situations. For safe operation, it is recommended to hire a qualified installer, especially if you are unsure about the complexity of the task.
Key Points for Connections
- Waterproof junction boxes: If the wiring does not feed directly into the fixture, a waterproof junction box ensures a safe connection between the power cable and the lamp.
- Cable glands: Many outdoor fixtures come with integrated cable glands. These are sealable entries through which the power cable is run. Tightening the gland ensures a watertight seal around the cable.
- Cable selection: Use outdoor cables suitable for underground or above-ground installation and resistant to UV rays and moisture.

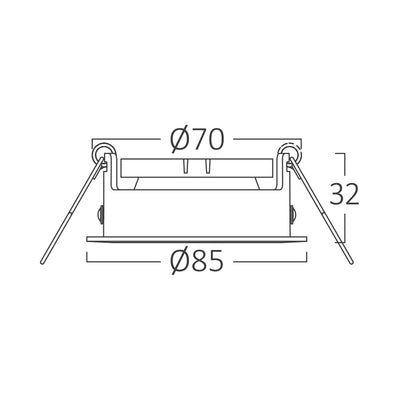

- Cut-out size: Measure the cut-out size of the recessed spotlight accurately. The hole in the surface (e.g., a ceiling panel or paving stone) must match the fixture’s cut-out size exactly to ensure a stable and safe installation.

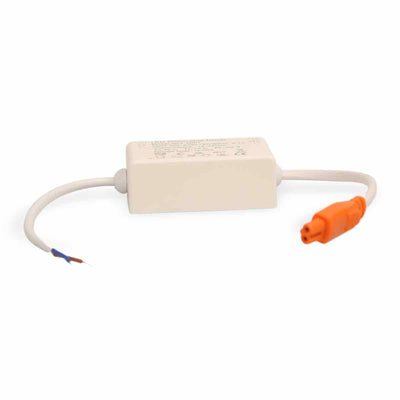

- Transformer or driver: Check whether the recessed spot operates on mains voltage (230V) or requires a transformer (for 12V spots) or LED driver. These components must also be waterproof and installed in a suitable, dry location if placed externally.
Lighting Features for Outdoors: Choose the Right Atmosphere and Functionality
The choice of light color, output, and beam angle influences the ambiance and functionality of your outdoor lighting. These aspects can be tailored to the intended use, whether it’s functional lighting, mood lighting, or accent lighting.
Light Color (Kelvin)
- Warm white (2700K - 3000K): These light colors create a cozy and inviting ambiance, ideal for terraces, canopies, and entrances where a homely atmosphere is desired.
- Cool white (4000K): A neutral, bright color that enhances visibility. Suitable for path lighting, driveways, and outdoor work areas where functional lighting is important.
- Daylight white (5700K - 6500K): This light color resembles natural daylight and is often used for security lighting or areas that require high brightness.
Luminous Output (Lumens)
The lumen value indicates the total amount of visible light emitted by a lamp. For mood lighting, lower lumen values (for example, 100-300 lumens per spot) are sufficient, while higher values (from 400 lumens upwards) are suitable for functional lighting of paths or larger areas.
Beam Angle (Degrees)
The beam angle determines how widely the light is distributed. A narrower angle (e.g., 15°-30°) creates a focused beam, suitable for highlighting specific objects such as trees, sculptures, or architectural details. A wider angle (e.g., 60°-120°) ensures broader, more even light distribution and is better suited for general lighting of terraces or large façades.
Dimmable Recessed Spotlights
Some LED recessed outdoor spotlights are dimmable, allowing you to adjust the light intensity as needed. This is advantageous for creating various atmospheres; bright light during an outdoor party and dimmed light for a relaxed evening. Always check the product information for dimmability and compatibility with the correct LED dimmer, as not every dimmer is suitable for all LED lights. Using the right LED dimmer contributes to a long lifespan for the spotlights and prevents flickering.
Where to Use Outdoor Recessed Spotlights? Versatile Possibilities
Outdoor recessed spotlights are suitable for a variety of purposes, from functional lighting to creating ambiance. Placement options are extensive, depending on the desired effect and technical requirements.
- Under canopies and verandas: Here, recessed spotlights provide evenly distributed light on the terrace. IP44 or IP65 fixtures are often chosen for these areas, depending on their exposure to rain.
- Along paths and driveways: Used as ground spots, recessed spotlights create safe walking routes and emphasize the contours of the outdoor space. IP67 or IP68 fixtures are required for this purpose.
- In façades and walls: Recessed spotlights in walls can create playful lighting effects, for example by projecting light up or down, and offer orientation in the dark. Choose IP65 fixtures here.
- In terrace and deck flooring: By integrating them into the floor, they provide subtle lighting without being obtrusive. Ensure proper drainage and a high IP rating for these applications.
Materials such as aluminum and stainless steel are commonly used for outdoor recessed spotlight housings due to their weather resistance. The IK rating (Impact Protection) can also be important, especially for ground spots in public or heavily used areas, to indicate protection against vandalism or accidental impacts.
LED Recessed Spotlights: A Sustainable Choice for Outdoors
Switching to LED technology for outdoor recessed spotlights offers substantial benefits in terms of energy consumption and lifespan. LED recessed spotlights use significantly less energy than traditional halogen or incandescent bulbs, resulting in lower energy costs. In addition, LED lamps have a long lifespan, reducing the need for frequent replacement and maintenance, especially in hard-to-reach outdoor locations.
By choosing LED recessed spotlights, you are investing in a cost-effective and reliable lighting solution that ensures stable performance for years to come. Many installers appreciate the ease of installation and long-term durability of modern LED recessed spotlights, which contributes to greater end-user satisfaction.
