Recessed Spotlights

Diverse Choices When Selecting Recessed Spotlights

The range of recessed spotlights is extensive and includes various models, each with unique features tailored to different applications and interior styles. Making an informed choice for the right type of recessed spotlight contributes to the desired light output and aesthetics.

• Recessed spotlights with integrated light source: These spots feature a built-in LED chip. The advantage is a compact design and often a longer lifespan. In case of a defect, the entire fixture usually needs to be replaced.

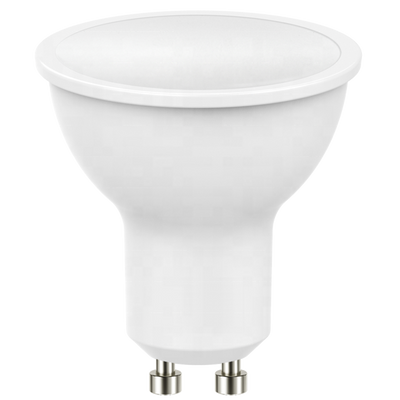

• Recessed spotlights for a separate light source: These fixtures are supplied without a bulb, allowing you to choose a suitable lamp yourself (often GU10, GU5.3, or G53). This offers flexibility in light color, dimmability, and the replacement of the light source independently of the fixture.

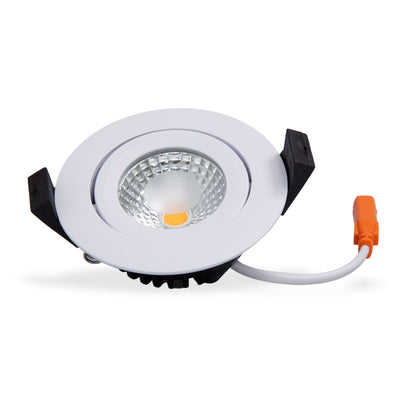

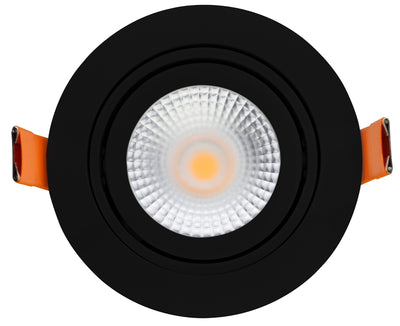

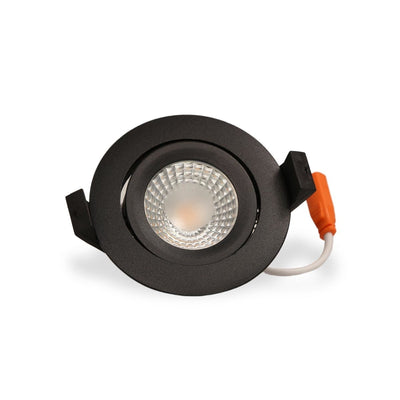

• Fixed and adjustable recessed spotlights: Fixed spots direct the light straight down. Adjustable variants allow you to aim the light beam, useful for highlighting a wall, artwork, or work surface.
• Shape and finish: Recessed spotlights are available in various shapes such as round, square, or rectangular, and finishes like white, black, chrome, or brushed metal. The choice of material and shape determines the visual impact on your ceiling.

Recessed Spotlights in Practice: Technical Specifications and Meaning

When purchasing recessed spotlights, understanding technical specifications is important to ensure a functional and durable lighting solution. These parameters determine how the spotlight performs and in which environment it can be safely used.

IP Rating: Protection Against Water and Dust

The IP rating (Ingress Protection) indicates the level of protection against intrusion of solid objects (first digit) and water (second digit). For recessed spotlights, especially in damp environments, this rating is crucial.

Light Color (Kelvin), Light Output (Lumen), and Color Rendering (CRI)

These specifications define the visual experience of the recessed spotlight:

• Light color (Kelvin): This influences the atmosphere. 2700K (very warm white) creates a cozy ambiance, 3000K (warm white) is homely and generally applicable, 4000K (cool white) supports concentration and is more functional, and 6500K (daylight white) is suited for highly functional spaces.
• Light output (Lumen): Lumen indicates how much light a lamp produces. The required lumens per square meter greatly depend on the space and activity. For general lighting in a living room, 300-500 lumens per m² may be sufficient, while a bathroom may require 500-600 lumens per m². Kitchens or workspaces often need a higher lumen value for task lighting.
• Color rendering index (CRI): A high CRI value (above 80) means colors are rendered true to life, comparable to daylight. In areas where color accuracy is important, such as kitchens, dressing rooms, or stores, a CRI of 90 or higher is recommended.

Dimmability and Smart Features

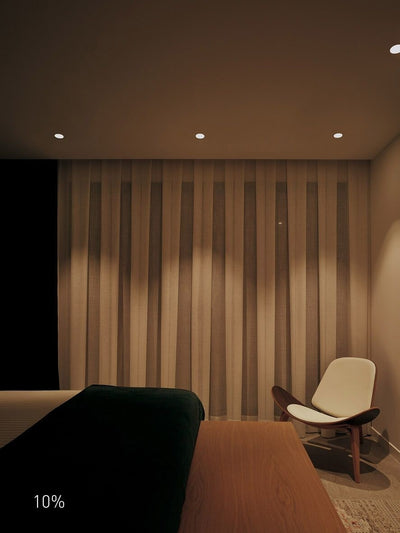

Many recessed spotlights are dimmable, enhancing flexibility in ambiance and energy consumption. There are several dimming techniques, such as trailing-edge, leading-edge, and DALI. Dimmable spots vary in brightness, and 'dim-to-warm' spots also adjust the color temperature as they dim—creating an even warmer atmosphere at lower light levels. Some recessed spotlights can be integrated into smart home systems for control via app or voice command.

Installation and Practical Guidelines for Recessed Spotlights

The installation of recessed spotlights requires accuracy, both for functionality and safety. While specific steps may vary, there are general guidelines that apply.

Preparation for Installation

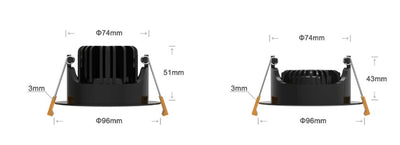

1. Determine cut-out size: Check the cut-out size (hole diameter) of the spotlight in the product specifications. This is the diameter of the hole you need to drill in the ceiling.
2. Check installation depth: Measure the available space above the suspended ceiling. The installation depth of the spot (including any driver) must fit here. There are extra flat recessed spots available for ceilings with limited space.
3. Turn off the power: Always switch off power to the circuit before starting installation work. Verify this with a voltage tester.

Mounting the Recessed Spotlight

The exact installation may differ depending on the type of recessed spot. Most LED recessed spotlights with integrated drivers can be connected directly to the 230V mains. Spots operating at 12V require a transformer to convert mains voltage.

1. Drill the hole: Use an appropriate hole saw to drill a hole of the correct cut-out size at the desired location in the ceiling.
2. Connect wiring: Connect the wiring of the recessed spotlight to the mains. Ensure safe and reliable connections with terminal blocks or clamps. If a driver is present, connect it according to the instructions.

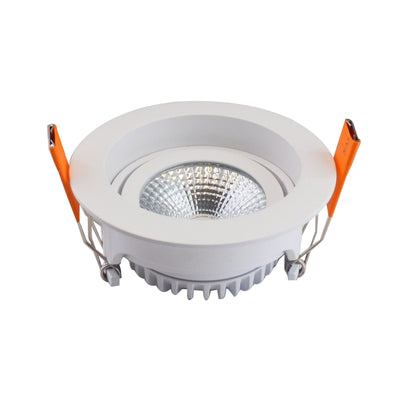

3. Install the spot: Push the spring clips of the spotlight upwards and carefully slide the fixture into the drilled hole until the spring clips securely fix the spot in the ceiling.
4. Insert light source (if applicable): If the spot requires a separate light source (such as GU10), insert it into the socket and twist a quarter turn to secure.
5. Switch on power: Switch the power back on and check the operation of the recessed spotlight.

Recessed Spotlights in Specific Spaces and Applications

The flexibility of recessed spotlights makes them suitable for virtually any space, provided the right specifications are taken into account.

Kitchen

In the kitchen, recessed spotlights are functional for both general and task lighting. Above the countertop or stove, a higher lumen value and cool white light (4000K) improve visibility. Recessed spots can also provide mood lighting above the dining table with a warmer color temperature (2700K–3000K). For areas near water or steam, an IP rating of at least IP44 or IP65 is recommended.

Bathroom

Bathroom lighting requires special attention due to moisture. Recessed spotlights with an appropriate IP rating are important here. For zones where direct contact with water is possible (shower enclosure, above the bathtub), an IP65 or IP67 spotlight is essential. For general bathroom lighting or above the washbasin, IP44 suffices. Dimmable spotlights with adjustable color temperature can provide both bright light for applying makeup and a relaxing atmosphere for a bath.

Living Room and Bedroom

In these spaces, the focus is on ambiance and flexibility. Recessed spotlights can serve as general lighting, or as accent lighting for paintings, bookcases, or decorative elements. A warm white color temperature (2700K–3000K) creates a pleasant atmosphere. Dimmable and adjustable spots offer the possibility to adapt light intensity and direction to the activity or mood.

Office and Retail Spaces

For professional environments, recessed spotlights contribute to a functional and representative look. A higher lumen output and cool white light (4000K) support concentration in offices. In stores, a high CRI (90+) combined with adjustable spots can highlight products naturally and attractively, enhancing displays.

The Advantages of LED in Recessed Spotlights

The switch to LED technology for recessed spotlights offers significant advantages in terms of efficiency and lifespan. These aspects make LED recessed spotlights a smart choice for both new construction and renovation projects.

• Energy efficiency: LED recessed spotlights use considerably less energy than traditional halogen or incandescent bulbs. This results in a noticeable reduction in energy costs, allowing for a quick return on investment.
• Long lifespan: LED spotlights have a much longer lifespan, often up to 15 to 25 times longer than conventional spots. This reduces the frequency of replacements and minimizes maintenance efforts, which is beneficial for both DIY users and installers.
• Instant brightness: LED spots reach full light output immediately after being switched on, with no warm-up time. This is an advantage in spaces where instant lighting is needed.
• Safety and environment: LED lighting produces less heat than halogen, increasing safety. Additionally, LED lamps contain no mercury or other hazardous substances, making them a more environmentally friendly option.
• Less heat generation: The limited heat emission of LED recessed spotlights reduces the stress on surrounding materials and insulation, contributing to the longevity of both the lighting and the construction.

By selecting the right recessed spotlights, taking technical specifications and the specific needs of the space into account, you can create a lighting plan that is both functional and atmospheric, with the many benefits LED technology has to offer.
