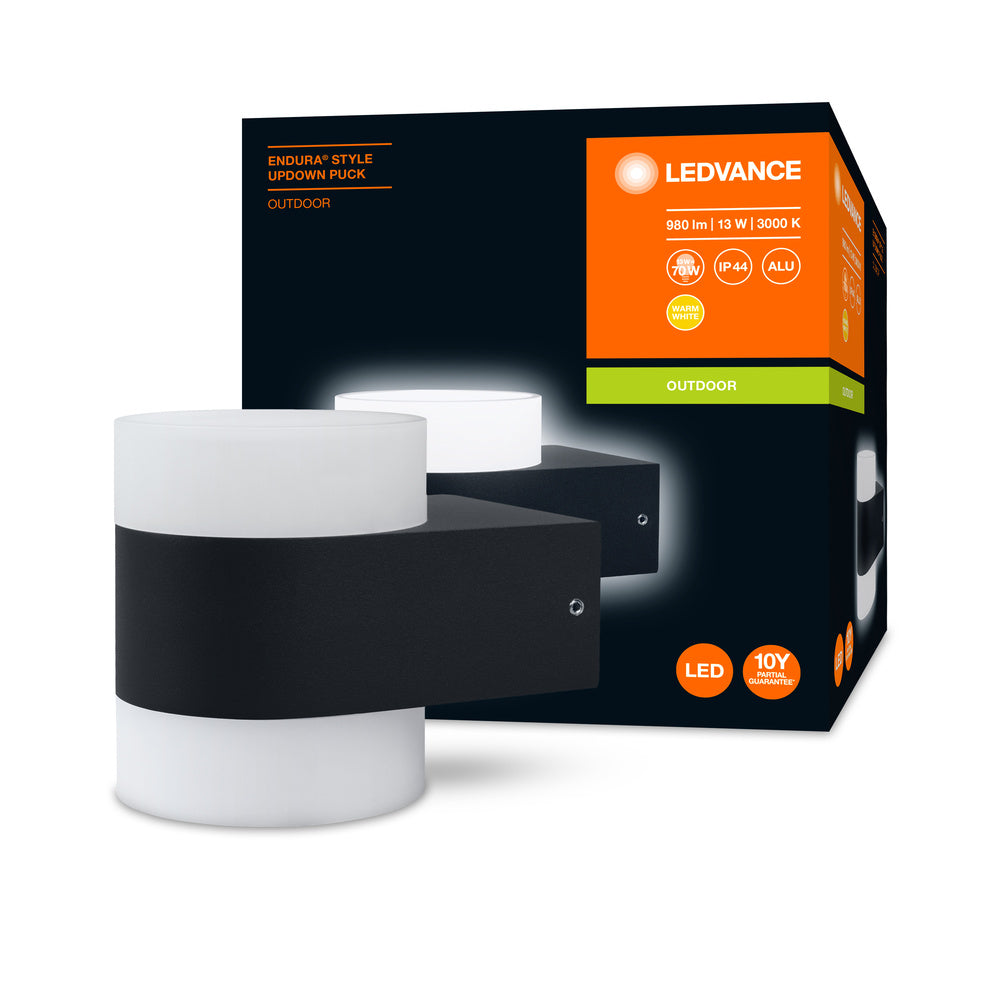

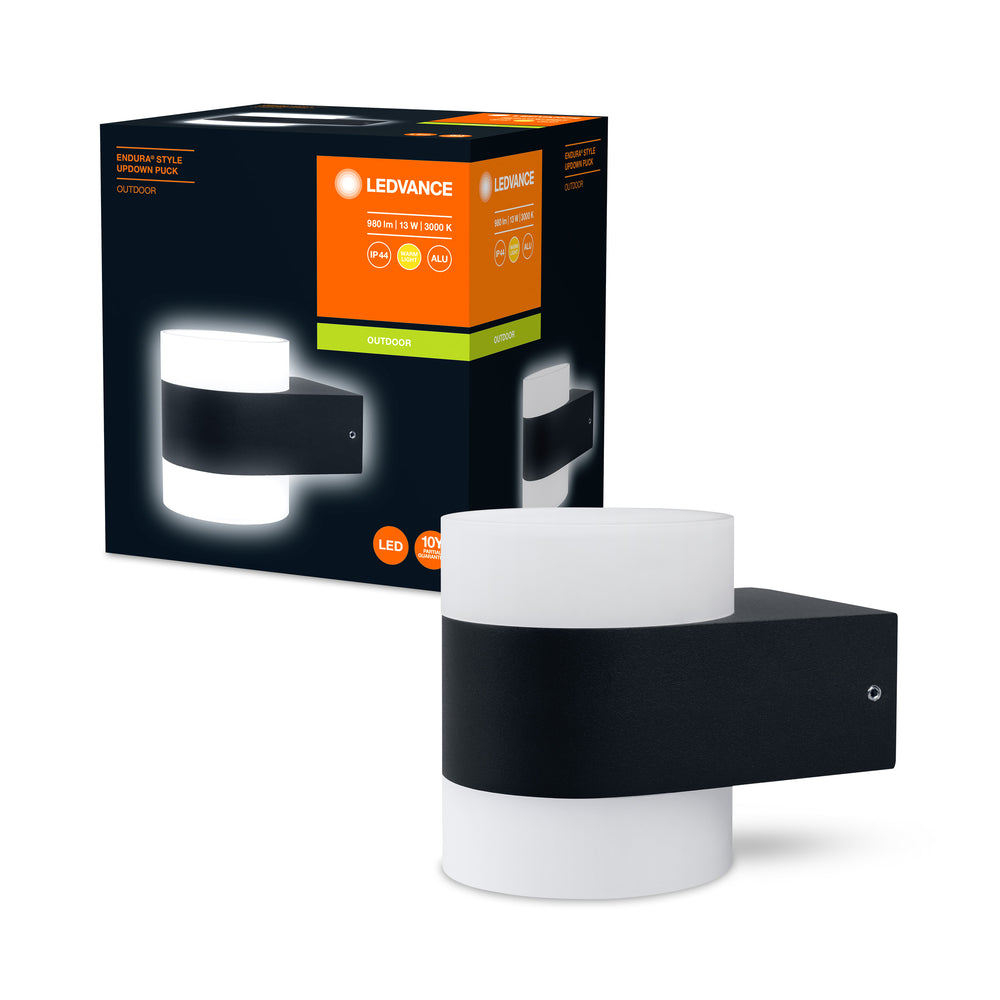

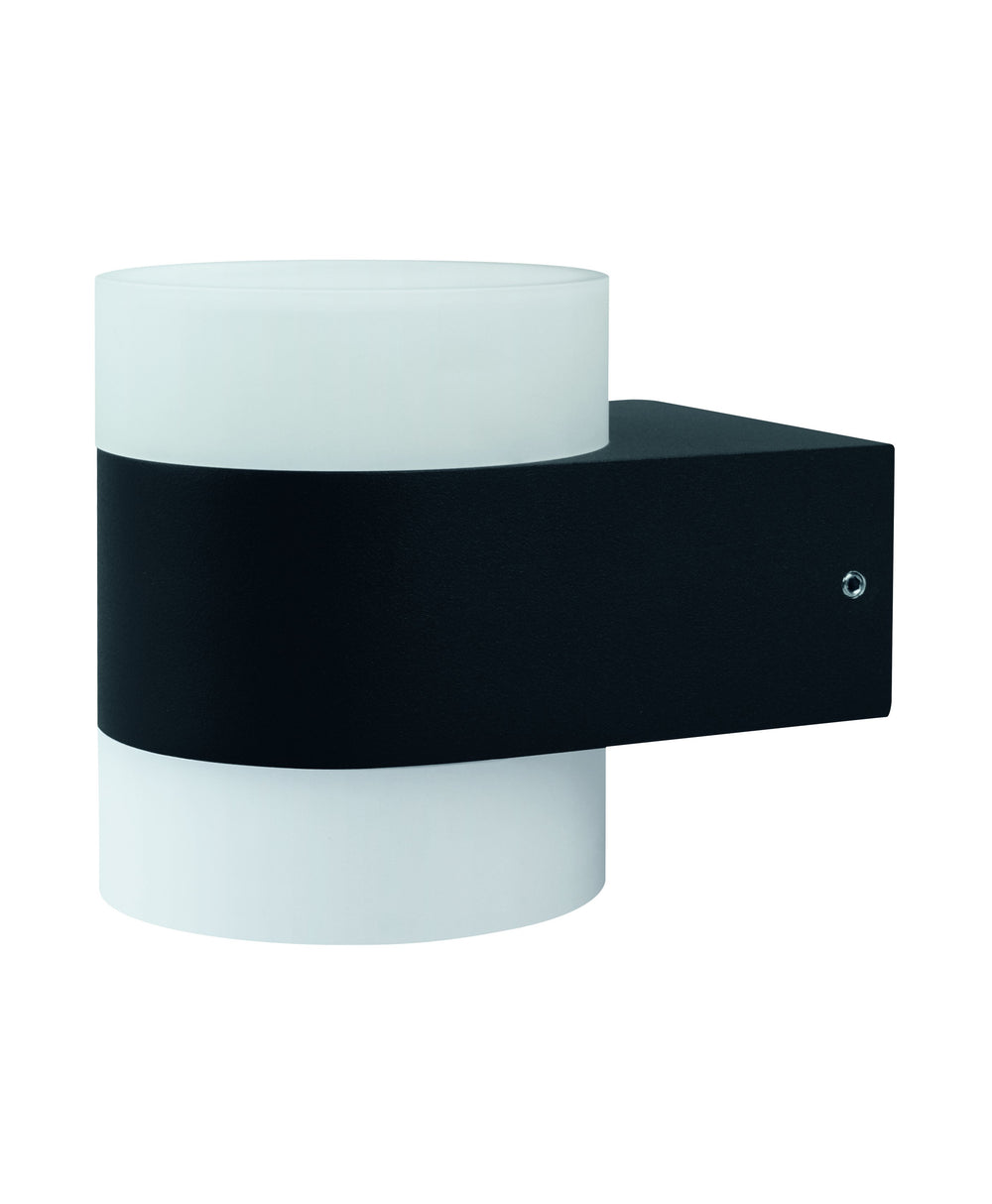

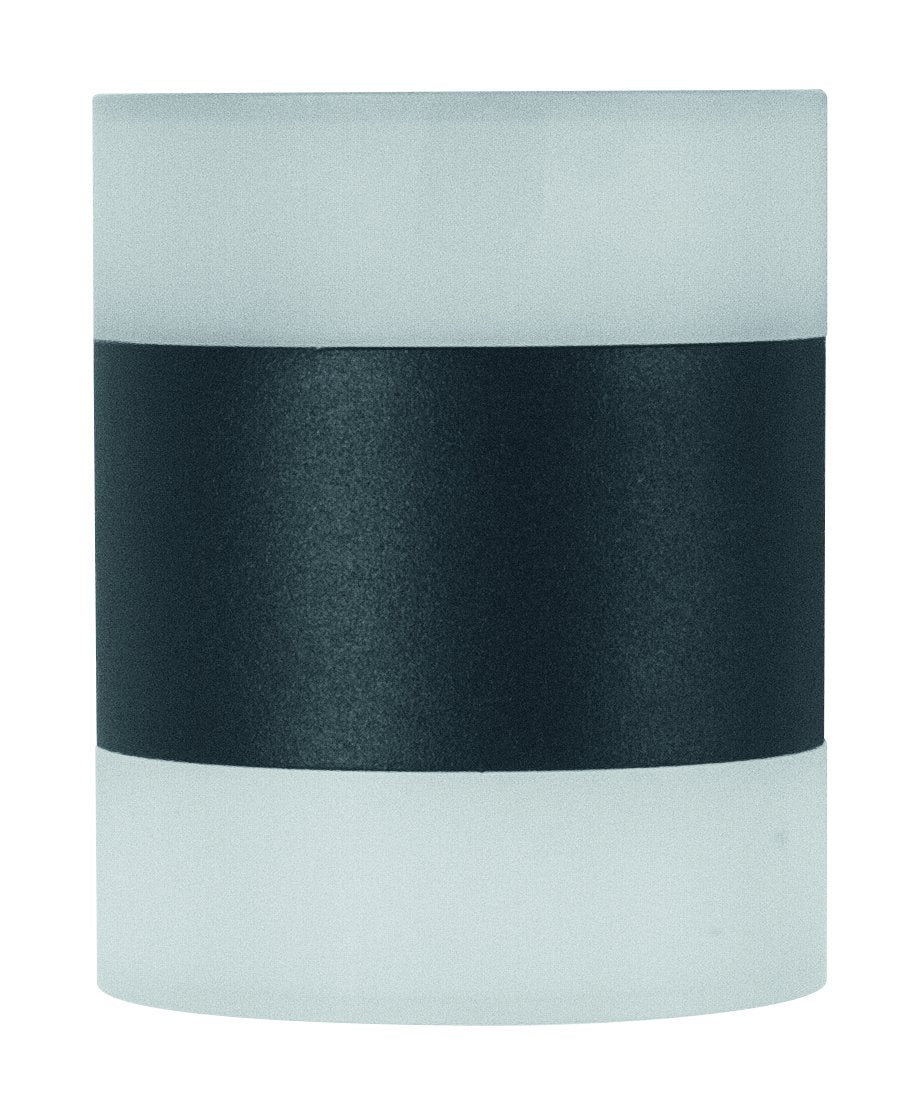

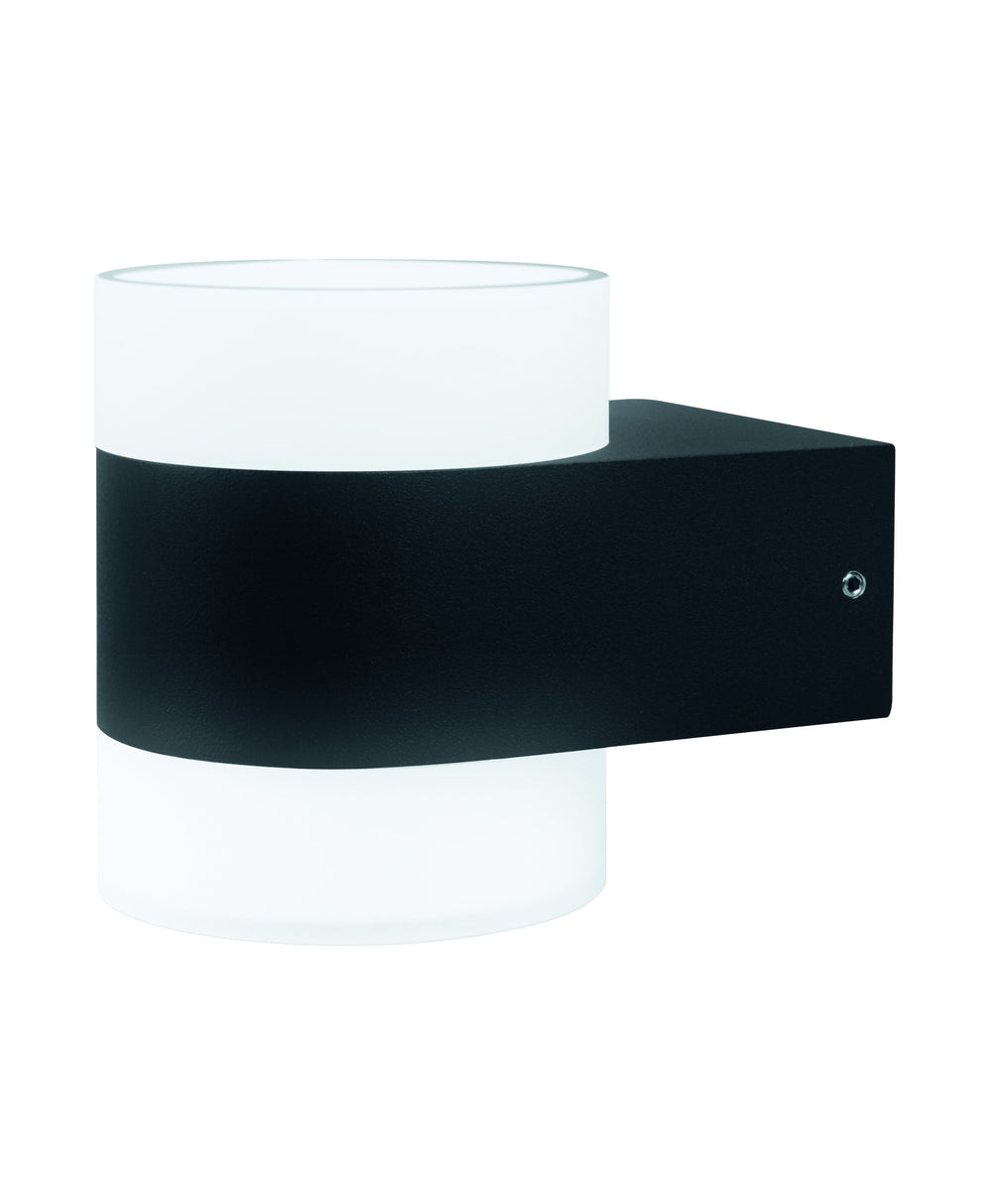

LED Wall Light Dark Gray ENDURA Style UpDown Puck

Ledvance ENDURA Style UpDown Puck LED Wall Light 13W 3000K 980 lumens IP44 Dark Gray Outdoor

LED Wall Light Dark Gray ENDURA Style UpDown Puck

-
13W
-
980 lm
-
3000K
-
IP 44
-
10 year warranty

Name: Ledvance ENDURA Style UpDown Puck LED Wall Light 13W 3000K 980 lumens IP44 Dark Gray Outdoor
Brand: Ledvance
SKU: LV205567
Price: 39.95 EUR
Availability: InStock

LV205567

Asset 13054463 4058075205567 endura style updown puck 13 w dg en old Asset 13048053 endura style midi and updown Asset 10017540 legal insert Asset 13052971 endura style updown puck 13w

39,95

Expected delivery time: 1 - 3 days

Shipped from:

Pay later within 30 days
Return up to 60 days later
Ordered before 7:00 PM, shipped the same day
Free shipping on orders over 69,-

Expected delivery time: 1 - 3 days

Shipped from:

Pay later within 30 days
Return up to 60 days later
Ordered before 7:00 PM, shipped the same day
Free shipping on orders over 69,-

Your cart is empty

No idea where to start? Try these categories:

Lightsources Fixures Installation material Other

Total Including VAT

0,⁰⁰

Pay later within 30 days
Return up to 60 days later
Ordered before 7:00 PM, shipped the same day
Free shipping on orders over 69,-

Description

Stylish LED wall light for outdoor spaces

The Ledvance ENDURA Style UpDown Puck LED wall light gives you a sleek and practical solution for outdoor lighting. With a 13W LED, it delivers warm 3000K light in both up and down directions, making it perfect for illuminating facades, entryways, and patios while being energy efficient and durable.

Modern design and durability

This fixture comes with a die-cast aluminum body in a Dark Gray finish for both aesthetics and strength. The IP44 and IK03 protection ratings mean you can confidently install it outdoors where it will withstand splashes of water and minor impacts.

Efficient LED performance

You get around 980 lumens of light output with a CRI 80, ensuring natural visual comfort. The wide 110° beam angle spreads light evenly, making it ideal for enhancing building facades or highlighting outdoor features.

Easy installation and reliable use

The luminaire is designed for simple surface-mounted wall installation. With quick wiring through screw terminals, you’ll find setup faster and more convenient. The integrated LED light source has a long lifespan of 30,000 hours with up to 15,000 switching cycles, giving you hassle-free performance.

Technical specifications

Ledvance ENDURA Style UpDown Puck LED Wall Light 13W 3000K 980 lumens IP44 Dark Gray: A modern outdoor wall light designed for energy efficiency and style.
Nominal wattage: 12.5W LED providing bright and efficient lighting.
Voltage: 220–240V ensures compatibility with standard mains connections.
Luminous flux: 980 lumens, giving you reliable brightness for outdoor spaces.
Color temperature: 3000K, providing warm white light for welcoming ambiance.
Color rendering index (CRI): ≥80, ensuring colors look natural under the light.
Beam angle: 110°, offering wide, even light distribution.
Protection rating: IP44 for outdoor resistance and IK03 for impact protection.
Material: Die-cast aluminum housing with PMMA cover for durability.
Dimensions: 131mm length x 91mm width x 110mm height.
Lifespan: 30,000 hours with up to 15,000 switching cycles.
Certifications: CE, EAC, UKCA compliance for safety assurance.

Specifications

General

Product Name: ENDURA Style UpDown Puck 13W Dark Gray
Product Family: ENDURA STYLE UPDOWN PUCK
Product Description: Luminaire with direct up and down light output
Light Source Type: LED
Key Features: Easy and quick installationEnergy-efficient with LED technologyBright and functional outdoor designDie-cast aluminum housing
Areas of Application: Outdoor useBuilding facadesEntrance lightingPatios and balconies

Electrical Attributes

Nominal Wattage

12.5 W

Nominal Voltage

220-240 V

Mains Frequency

50-60 Hz

Nominal Current

67 mA

Inrush Current

4.5 A

Power Factor

> 0.5

Total Harmonic Distortion

< 20%

Protection Class

Operating Mode

Electronic control gear (ECG)

Circuit Breaker Compatibility

Max units per B16 breaker: 100
Max units per C10 breaker: 110
Max units per C16 breaker: 200

Photometrical Attributes

Luminous Flux: 980 lm
Total Luminous Flux of Light Sources: 1450 lm
Luminous Efficacy: 75 lm/W
Color Temperature: 3000 K
Light Color: Warm White
Color Rendering Index (CRI): ≥80
Color Consistency: < 6 SDCM
Beam Angle: 110°
Flicker Metric (Pst LM): < 5
Photobiological Safety Group EN62778: RG1
Photobiological Safety Group EN62471: RG0

Physical Attributes

Housing Color

Dark gray

Body Material

Die-cast aluminum

Cover Material

Polymethylmethacrylate (PMMA)

Product Weight

630 g

Mercury Content

0.0 mg

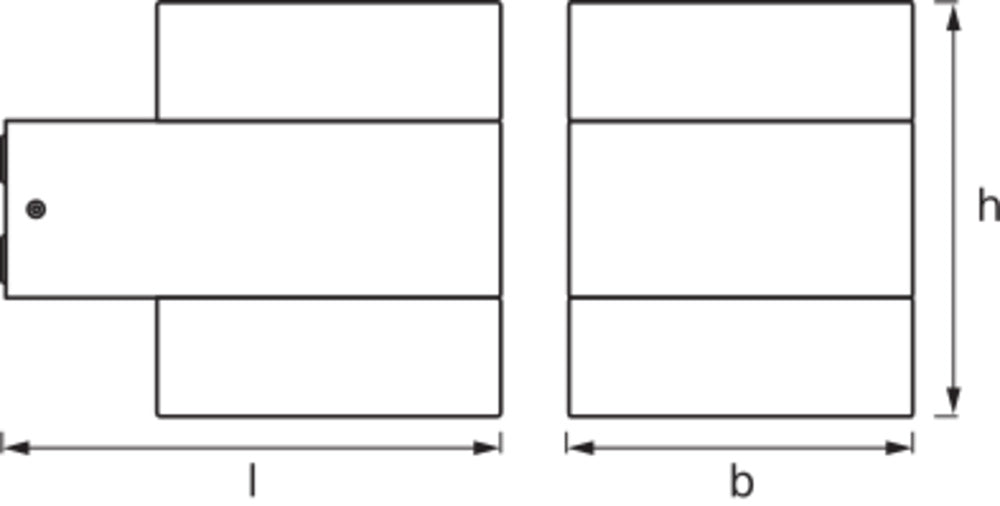

Dimensions

Length: 131 mm
Width: 91 mm
Height: 110 mm

Operational Attributes

IP Rating: IP44
IK Rating (Shock Resistance): IK03
Dimmable: No
Mounting Type: Surface
Mounting Location: Wall
Application Environment: Outdoor
Connection Type: Screw terminal
Light Source Included: Yes
Light Source Replaceable: No
Operating Temperature Range: -20 to 40 °C
Storage Temperature Range: -30 to 70 °C

Longevity

Lifespan (L70/B50 at 25°C): 30000 hours
Switching Cycles: 15000

Emergency Lighting

Operation Type: Non-maintained

Certifications and Standards

Standards Compliance: CE, EAC, UKCA
D-Sign (Limited Surface Temperature): No

Logistical Data

Packaging: {"Type"=>"Folding box", "Product Code"=>"4058075205567", "Pieces per Unit"=>1, "Dimensions (L x W x H)"=>"124 mm x 154 mm x 166 mm", "Gross Weight"=>"670 g", "Volume"=>"3.17 dm³"}{"Type"=>"Shipping box", "Product Code"=>"4058075205574", "Pieces per Unit"=>6, "Dimensions (L x W x H)"=>"385 mm x 170 mm x 355 mm", "Gross Weight"=>"4252 g", "Volume"=>"23.23 dm³"}
