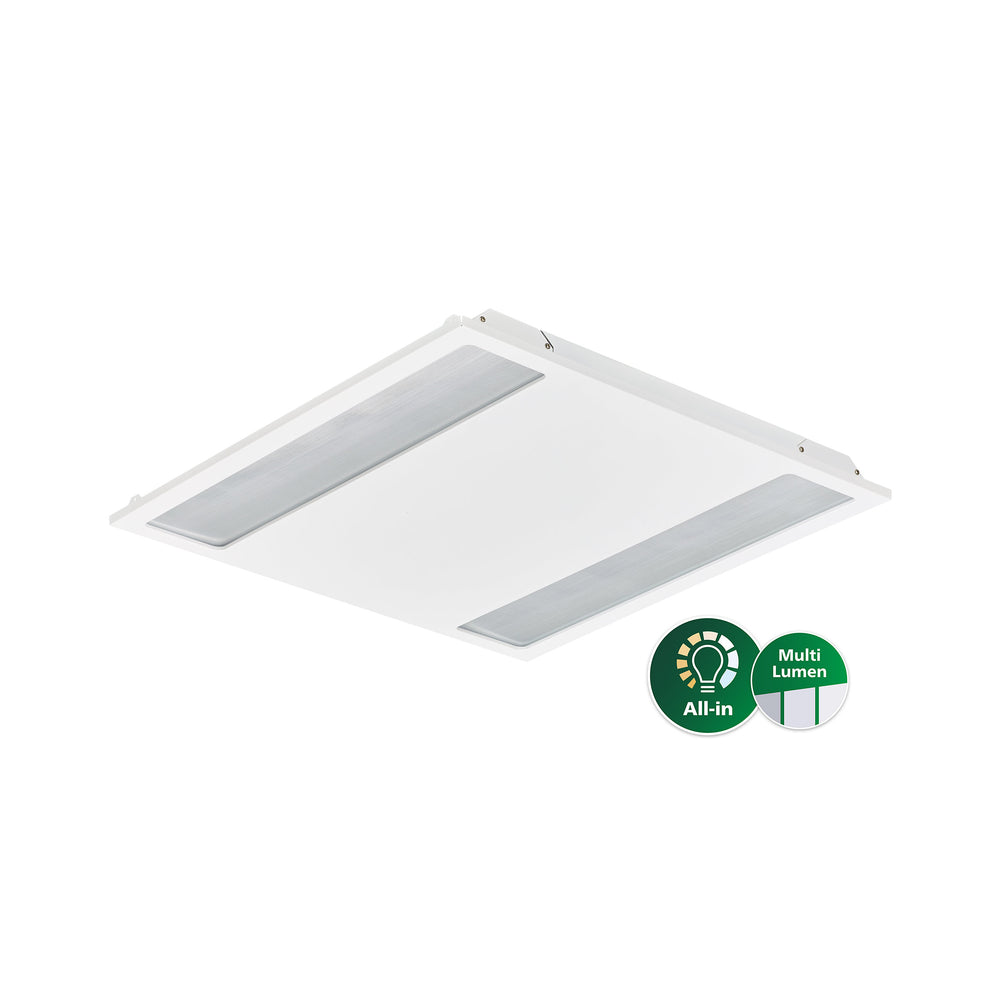

Philips CoreLine RC136B LED Panel Light 22W-31W 3000K 2800-4000 lumens 597x597mm White IP20/44 UGR25
Philips CoreLine RC136B LED Panel Light 22W-31W 3000K 2800-4000 lumens 597x597mm White IP20/44 UGR25
Philips CoreLine RC136B LED Panel Light 22W-31W 3000K 2800-4000 lumens 597x597mm White IP20/44 UGR25

LED Panel Light RC136B 597x597x44 mm
-
2800-4000 lm
-
3000K
-
5 year warranty
-
220-240V
-
<25

PH512160
Datasheet
84,94
Stock: 30+
Expected delivery time: 7 - 9 dagen
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Philips CoreLine RC136B LED Panel Light 22W-31W 3000K 2800-4000 lumens 597x597mm White IP20/44 UGR25
LED Panel Light RC136B 597x597x44 mm
-
2800-4000 lm
-
3000K
-
5 year warranty
-
220-240V
-
<25
84,94
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0,00
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Description

Philips CoreLine LED panel light for efficient indoor lighting

The Philips CoreLine RC136B LED panel light gives you reliable performance, energy savings, and a sleek design. With multi-lumen output, warm white 3000K light, and durable housing, this panel is perfect when you want both comfort and efficiency in your office, corridor, or commercial space.

Key features and benefits

  • Philips CoreLine RC136B LED panel light delivers 2800 to 4000 lumens, offering flexible brightness for different applications.
  • Multi-lumen design with selectable power consumption between 22W and 31W helps you better match illumination to the room size.
  • Warm white 3000K color temperature creates a comfortable lighting atmosphere for workspaces and public areas.
  • CRI >80 ensures natural and accurate color rendering, making environments look vibrant and pleasant.
  • UGR 25 rating helps limit glare, improving visual comfort in offices, schools, and healthcare facilities.
  • Steel housing with microprismatic lens provides durability and optimized light distribution.
  • Ingress protection IP20/44 ensures safety against touch and limited splash resistance, suitable for dry and semi-damp environments.
  • Long lifetime performance with up to L70 at 100,000 hours means low maintenance and dependable operation.
  • Certified with CE, ENEC, and RoHS compliance, ensuring safety and environmental responsibility.
  • Compact size of 597x597x44mm makes it ideal for standard ceiling grids and quick installation.

Applications

You can use this Philips CoreLine LED panel light for suspended ceilings in offices, schools, healthcare centers, shops, and public buildings. Its warm white illumination and high efficacy make it a cost-effective upgrade over conventional luminaires, ensuring you enjoy both energy savings and enhanced lighting quality.

Specifications

General

Product Name
CoreLine Inbouw
Full Product Name
RC136B 28S_34S_40S/830 PSU W60L60 NOC
Product Type
All-in, Multi Lumen
Light Source Type
LED
Replaceable Light Source
No
Driver Included
Yes
Number of Control Gear Units
1
Service Tag
Yes
Warranty Period
5 years

Product Identifiers

Order Product Name
RC136B 28S_34S_40S/830 PSU W60L60 NOC
Order Code
8719514512160
Material Number (12NC)
911401880281
EAN/UPC - Product
8719514512160
EAN/UPC - Case
8719514512160

Electrical Ratings

Input Voltage
220-240 V
Input Frequency
50 or 60 Hz
Power Consumption
22 W, 31 W
Power Consumption Tolerance
+/-10%
Power Factor
0.9
Inrush Current
15.3 A
Inrush Time
0.29 ms
Total Harmonic Distortion (THD)
20%
Number of Products on MCB (16A Type B)
35
Protection Class
Class I

Photometric Properties

Luminous Flux
2800 lm, 3400 lm, 4000 lm
Luminous Efficacy (Nominal)
130 lm/W
Correlated Color Temperature (CCT)
3000 K
Light Source Color
830 warm white
Color Rendering Index (CRI)
>80
Saturated Red (R9)
<50
Initial Chromaticity
(0.43, 0.40) SDCM ≤3
Luminous Flux Tolerance
+/-10%
Beam Angle
100°
Unified Glare Rating (UGR)
25
Flicker Value (PstLM)
1
Stroboscopic Effect Value (SVM)
1.6

Physical Attributes

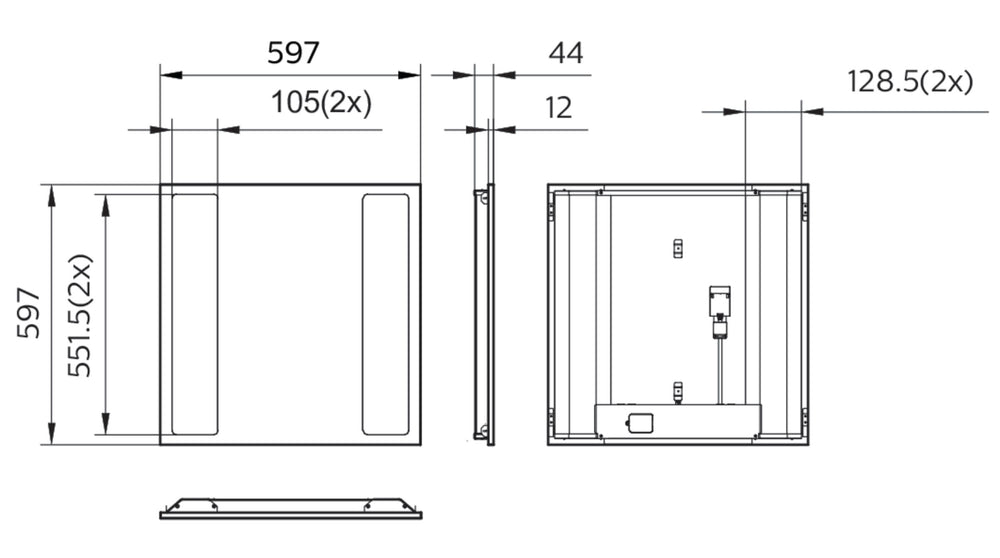

Dimensions
Overall Length
597 mm
Overall Width
597 mm
Overall Height
44 mm
Net Weight
3.6 kg
Housing Material
Steel
Housing Color
White
Optic Material
Polycarbonate
Optical Cover Material
Polymethyl methacrylate
Optical Cover Finish
Microprismatic lens
Connection Type
3-pole connection unit
Cable
Cable with 3-pole connector

Control and Dimming

Dimmable
No
Control Interface
On/Off
Constant Light Output
No
Suitable for Random Switching
Yes

Operational Conditions and Durability

Ambient Temperature Range
-10 to +40 °C
Performance Ambient Temperature
25 °C
Ingress Protection Code
IP20/44 (Finger-protected, wire-protected, splash-proof)
Impact Protection Rating (IK Code)
IK03 (0.3 J)
Maintenance Class
Class C, maintenance-free luminaire without serviceable parts

Lifetime Performance (IEC)

Lumen Maintenance at 50,000 hrs
L85
Lumen Maintenance at 100,000 hrs
L70
Driver Failure Rate at 50,000 hrs
5%

Approvals and Certifications

CE Mark
Yes
ENEC Mark
Yes
RoHS Compliant
Yes
Flammability Mark
F (For mounting on normally flammable surfaces)
Glow-Wire Test
650 °C, duration 30 s
Photobiological Risk
Risk group 0 @200mm to EN62778
