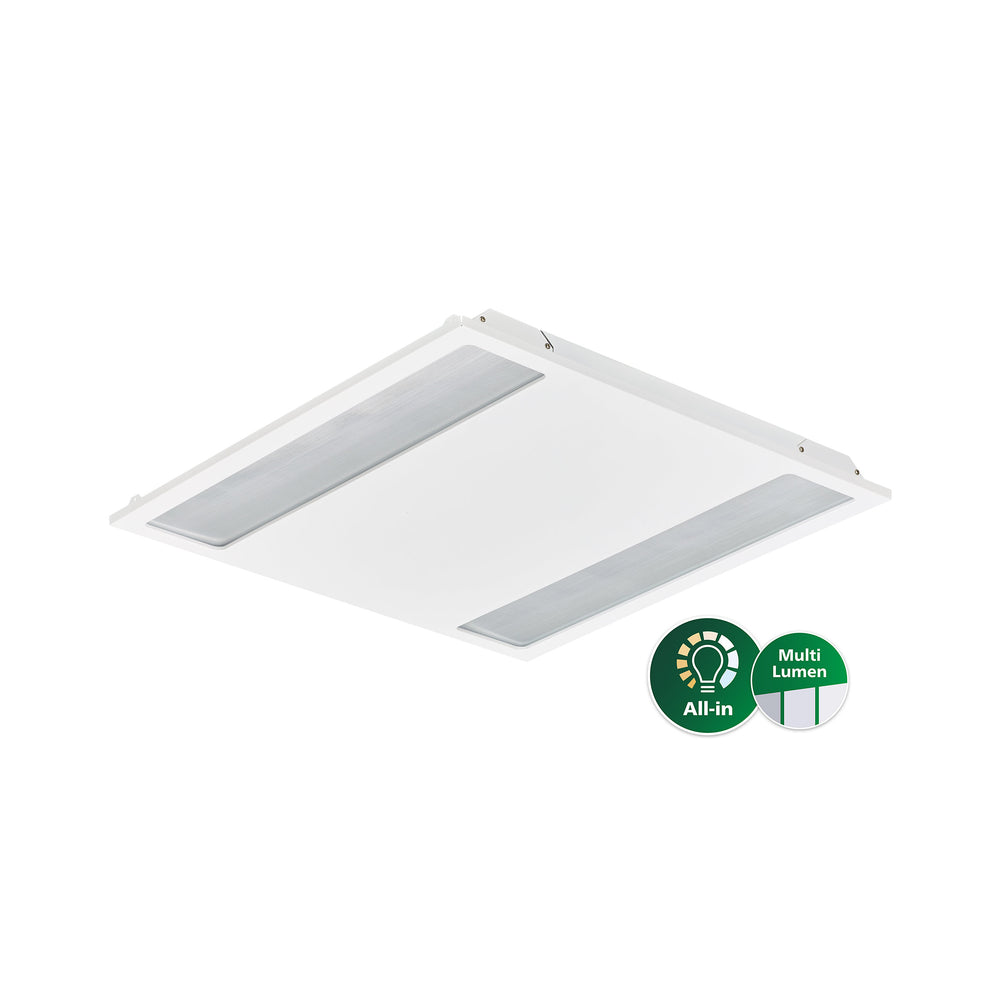

Philips CoreLine RC136B LED panel light 31W 4000K 3100-4300 lumens DALI dimmable 597x597mm White IP20/IP44
Philips CoreLine RC136B LED panel light 31W 4000K 3100-4300 lumens DALI dimmable 597x597mm White IP20/IP44
Philips CoreLine RC136B LED panel light 31W 4000K 3100-4300 lumens DALI dimmable 597x597mm White IP20/IP44

LED Panel light CoreLine RC136B 597x597x44 mm
-
3100-4300 lm
-
4000K
-
5 year warranty
-
220-240V
-
<25

PH512276
Datasheet
114,35
Stock: 30+
Expected delivery time: 7 - 9 dagen
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Philips CoreLine RC136B LED panel light 31W 4000K 3100-4300 lumens DALI dimmable 597x597mm White IP20/IP44
LED Panel light CoreLine RC136B 597x597x44 mm
-
3100-4300 lm
-
4000K
-
5 year warranty
-
220-240V
-
<25
114,35
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0,00
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Description

Philips CoreLine LED panel light for efficient office and commercial use

The Philips CoreLine RC136B LED panel light gives you high-quality illumination with energy savings, offering 3100 to 4300 lumens with selectable settings. You get a neutral white 4000K light, reliable DALI dimming, and a slim 597x597mm design that works well in modular ceilings.

Why this LED panel light is a smart choice

You benefit from versatile lumen output choices, professional micro-prismatic optics for reduced glare, and a modern White finish that fits seamlessly into offices, schools, or retail spaces. This panel combines maintenance-free reliability with a 5-year warranty, so you can install it and trust it to perform for the long term.

Key features at a glance

  • Philips CoreLine RC136B LED panel light delivers 3100, 3700 or 4300 lumens for flexible brightness levels.
  • 4000K neutral White color temperature creates a comfortable and productive atmosphere.
  • DALI dimmable driver lets you integrate the panel into professional lighting control systems for efficiency.
  • Micro-prismatic lens design ensures a UGR of 25, minimizing glare and improving visual comfort.
  • High efficacy of 140 lm/W means reduced energy costs compared to conventional fixtures.

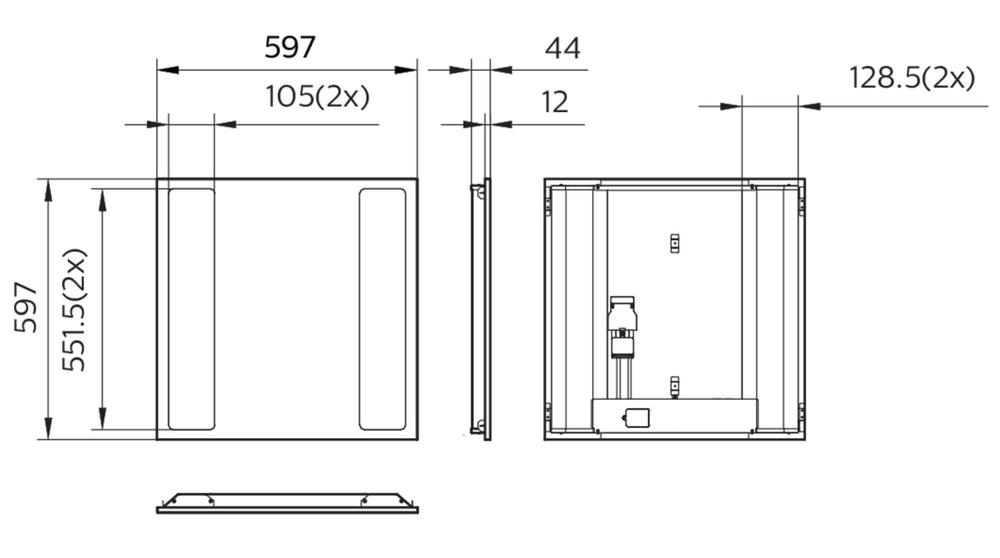

  • Compact 597x597x44mm size fits standard ceiling grids with a White steel housing for a clean look.
  • Ingress protection rating of IP20/IP44 makes it suitable for dry rooms or splash-proof environments.
  • Robust build with IK03 impact rating provides everyday durability.
  • Rated lifetime up to L85 at 50,000 hours ensures consistent lighting for years of use.
  • Safety class II, CE, ENEC, and RoHS certified for trustworthy compliance and installation safety.

Perfect applications for this LED panel

This panel is ideal when you need efficient LED office lighting, classroom lighting, or retail space illumination. It offers secure installation with Wieland connectors, and its dimmable DALI interface allows you to tailor the mood and maximize energy savings in shared environments. Use it to replace older fluorescent grid luminaires and enjoy improved light quality with less maintenance.

Specifications

General Information

Product Name
CoreLine Inbouw
Full Product Name
RC136B 31S_37S_43S/840 PSD W60L60 NOC W5
Product Type
All-in, Multi Lumen
Light Source Type
LED
Light Source Replaceable
No
Driver Included
Yes
Number of Gear Units
1
Serviceable
No
Maintenance Class
Class C, maintenance-free luminaire without serviceable parts
Warranty Period
5 years

Light Technical

Luminous Flux
3100 lm, 3700 lm, 4300 lm
Luminous Efficacy
140 lm/W
Correlated Color Temperature
4000 K
Light Source Color
840 Neutral White
Color Rendering Index (CRI)
>80
Saturated Red (R9)
<50
Initial Color Consistency
(0.38, 0.38) SDCM ≤3
Optic Type
Micro-prismatic lens
Beam Spread
100°
Unified Glare Rating (UGR)
25
Flicker Value (PstLM)
1
Stroboscopic Effect Value (SVM)
1.6

Operating and Electrical

Input Voltage
220-240 V
Input Frequency
50 to 60 Hz
Power Consumption
31 W, 22 W
Inrush Current
15.6 A
Inrush Time
0.23 ms
Power Factor
0.9
Total Harmonic Distortion
20%
IEC Protection Class
Safety class II
Connection Type
5-pole connection unit
Cable
Cable with 5-pole Wieland/Adels compatible connector
Connector Type
Wieland
Products on MCB 16A Type B
30
Suitable for Random Switching
Yes
Ambient Operating Temperature Range
-10 to +40 °C
Performance Ambient Temperature
25 °C

Controls and Dimming

Dimmable
Yes
Control Interface
DALI
DALI Standard
DALI-2
Driver Type
Power supply unit with DALI interface
Constant Light Output
No
Minimum Dim Level
3%

Physical Attributes

Housing Material
Steel
Reflector Material
Polycarbonate
Optical Cover Material
Polymethyl methacrylate
Housing Color
White
Net Weight
3.6 kg
Ingress Protection Code
IP20 / IP44 (Finger-protected / Splash-proof)
Impact Protection Rating (IK code)
IK03
Dimensions
Overall Length
597 mm
Overall Width
597 mm
Overall Height
44 mm

Performance Over Time

Luminous Flux Tolerance
+/-10%
Power Consumption Tolerance
+/-10%
Driver Failure Rate at 50,000 hours
5%
Lumen Maintenance at 50,000 hours
L85
Lumen Maintenance at 100,000 hours
L70

Approvals and Certifications

CE Mark
Yes
ENEC Mark
Yes
EU RoHS Compliant
Yes
Flammability Mark
For mounting on normally flammable surfaces
Glow-wire Test
Temperature 650 °C, duration 30 s
Photobiological Risk
Risk group 0 @ 200mm to EN62778

Order Information

Order Code
8719514512276
Full EOC
871951451227600
Material Number (12NC)
911401881381
EAN/UPC Product
8719514512276
EAN/UPC Case
8719514512276
Quantity Per Pack
1
Packs Per Outer Box
1
